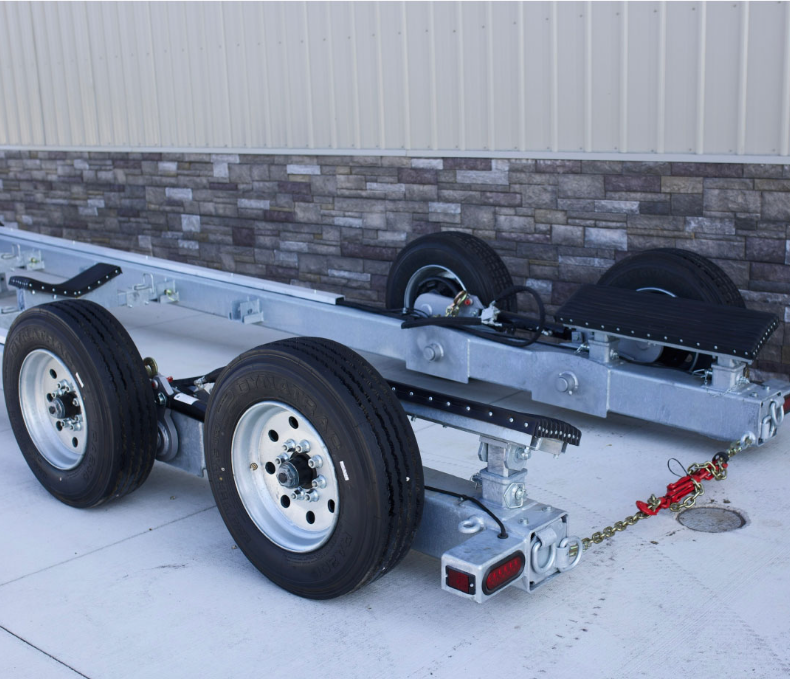

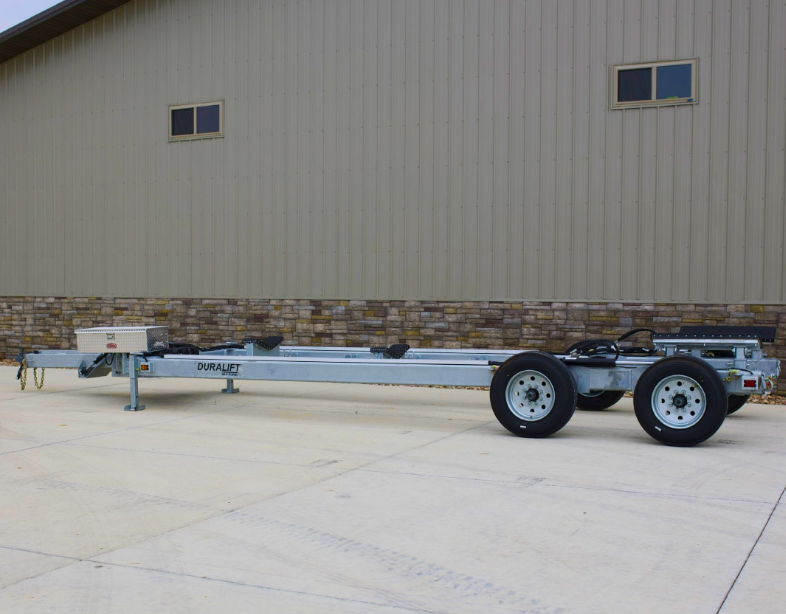

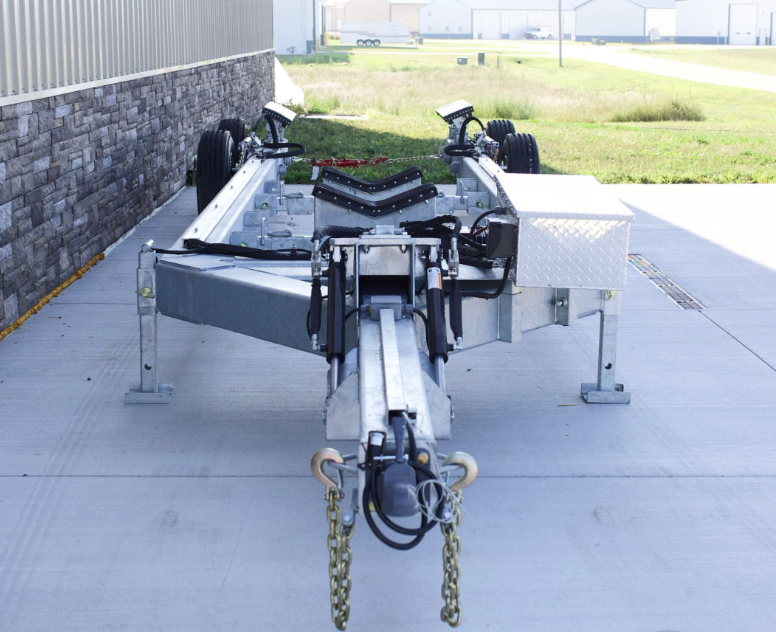

Hydraulic Boat Trailers are specialized, heavy-duty hauling systems designed for marinas, boatyards, commercial transporters, and dry-stack storage operations. Utilizing powered hydraulic arms, air-ride suspension, expanding frame widths, and adjustable hull pads, these trailers allow a single operator to load, haul, launch, and block boats of virtually any hull shape—including powerboats, catamarans, and deep-draft sailboats—without needing a crane or travelift.
Hydraulic Boat Trailers revolutionize marine yard logistics and highway boat transportation by offering complete hydraulic control over frame height, pad alignment, and width clearance. Whether maneuvering in tight yard spaces or transporting wide-beam vessels over long distances, these trailers provide unparalleled versatility, minimal hull stress, and rapid loading cycles.
Key Features & Advantages
Hydraulic Lift & Frame Adjustment: Powered hydraulic cylinders control frame height, allowing the trailer to drop flat to the ground for low clearance or raise high to clear obstacles and block boats easily.

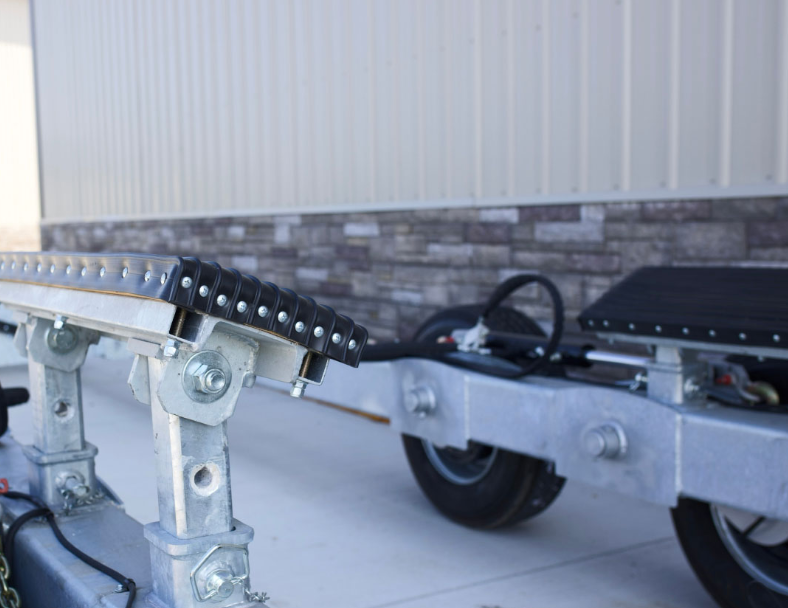

Versatile Hull Support Pads: Independent hydraulic arms and pivoting carpeted/polyurethane pads adjust to match deep-V hulls, flat-bottom boats, step hulls, and keeled sailboats.
Self-Loading & Unloading Capability: Enables a single technician to pick up a boat directly off support stands or block a vessel down without requiring additional crane equipment.
Corrosion-Resistant Structural Build: Built on reinforced steel box frames with heavy-duty galvanized or marine-grade polyurethane painted finishes to withstand salt spray and ramp submersion.
Highway & Yard Configurations: Available as towable highway units (equipped with air brakes and high-capacity multi-axle suspension) or self-propelled yard units with hydraulic drive units.
| Technical Specifications | Details |
| Pricing / Market Range | $25,000 – $150,000+ (Varies by tonnage capacity, towable vs. self-propelled) |
| Hauling Capacity Range | 5 Tons to 60+ Tons |
| Compatible Hull Types | Powerboats, Sailboats, Catamarans, Commercial Workboats |
| Hydraulic System | Electric-Start Gas/Diesel Power Unit with Multi-Valve Remote Control |
| Suspension System | Hydraulic or Air-Ride Independent Suspension |
| Running Gear | Multi-Axle Heavy Duty Dual Wheels with Hydraulic/Air Brakes |
| Frame Features | Hydraulic Expandable Width Frame & Rear Support Arms |
