$2,450.00

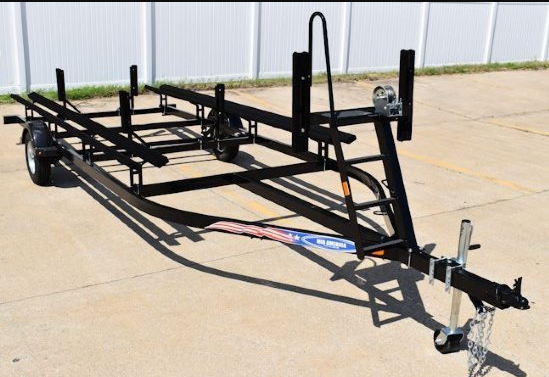

The PT16 Single Axle Pontoon Boat Trailer is a heavy-duty float-on transport trailer designed to carry 14-foot to 16-foot pontoon boats. Featuring a high-torque front winch stand with built-in ladder steps, fully adjustable carpeted bunks, a 3,500 lb axle, and protective powder coating, it offers effortless loading, launching, and highway towing for small-to-midsize pontoons.
The PT16 Single Axle Pontoon Boat Trailer is engineered to deliver reliable performance, simple loading, and safe road transit for compact pontoon vessels. Built on a rigid 4-inch steel box-tube chassis with a protective outer coating, this float-on trailer allows your boat to glide on and off smoothly during launch and retrieval.
Key Features & Advantages
Designed for 14′–16′ Pontoons: Optimized frame proportions and bunk lengths accommodate standard double-toon boats up to 16 feet long.

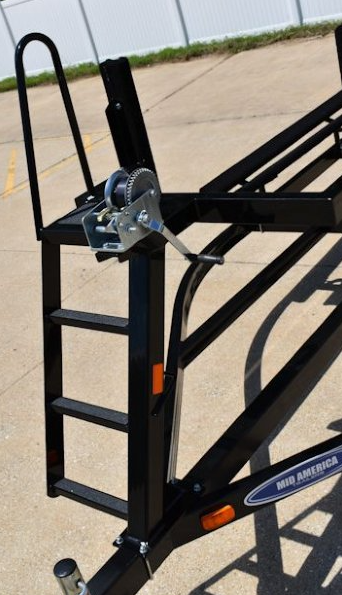

Integrated Front Winch Ladder: Outfitted with a deluxe winch stand that includes wide step treads and a heavy-duty handrail, making bow access and boarding effortless at the ramp.
Adjustable Support Bunks: Marine-grade carpeted bunks easily adjust laterally to fit varying pontoon log spacings and hull widths.
Heavy-Duty Running Gear: Supported by a 3,500 lb axle paired with 13-inch radial tires to handle highway speeds with minimal sway.
Weather & Corrosion Protection: Finished with a durable powder-coat layer, fully sealed marine LED lighting, and safety chain assemblies for long-term reliability in water environments.
| Technical Specifications | Details |
| Pricing / MSRP | $2,450 – $3,100 (Varies by bunk cover options & spare tire kit) |
| Recommended Boat Length | 14′ – 16′ Pontoon Boats |
| Overall Length / Bunk Length | 20′ Overall Length / 11′ Bunk Length |
| Payload Capacity | 2,570 lbs |
| Axle Rating | 3,500 lb Single Axle |
| Tires & Wheels | ST175/80R13 Range D Radial Tires (5-on-4.5 Bolt Pattern) |

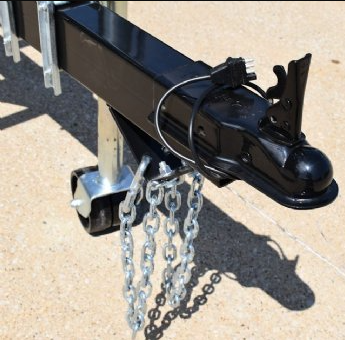

| Coupler Size & Wiring | 2″ Ball Coupler with 4-Way Flat Trailer Connector |
| Lighting System | Fully Submersible Waterproof LED Lights |
The Bear Track 6x10 Aluminum Utility Trailer is a lightweight, commercial-grade open cargo trailer engineered for hauling ATVs, side-by-sides, riding lawnmowers, and building materials. Built with an all-aluminum frame and deck, a single 3,500 lb Dexter rubber torsion axle, integrated stake pockets, and a fold-flat rear ramp gate, it delivers exceptional durability without the worry of frame rust or paint chipping.
The Bramber RG2/190 is a premium, single-axle braked roller boat trailer designed for powerboats, sports runabouts, and RIBs up to 19 feet (5.8 meters). Rated at 1,500 kg Gross Vehicle Weight, it combines a fully hot-dipped galvanized steel frame, AL-KO waterproof wheel bearings, and an adjustable multi-roller system to deliver effortless launching, smooth retrieval, and secure highway towing.
The Bramber SRG4/215 is a commercial-grade, twin-axle braked roller boat trailer engineered for powerboats, sports cruisers, and large RIBs up to 21.5 feet (6.5 meters). Rated at 2,500 kg Gross Vehicle Weight, it features an adjustable multi-roller system, a fully hot-dipped galvanized steel frame, AL-KO waterproof wheel bearings, and an integrated winch post to ensure smooth launches and effortless retrievals.
The BST650R Boat Trailer is a high-performance marine trailer custom-engineered to support and transport 19-foot to 20-foot motorboats, RIBs, and fiberglass hulls. Featuring a reinforced heavy-duty chassis, fully adjustable support rollers, corrosion-resistant frame protection, and high-capacity running gear, it ensures easy launching, smooth loading, and reliable highway towing.
The Highliner CL40-22 Surge Trailer is a heavy-duty single-axle bunk trailer designed for vessels between 19 and 22 feet. Featuring a 4,100 lb payload capacity, integrated hydraulic surge disc brakes, full carpeted bunks, and energy-efficient LED lighting, it provides exceptional stopping power and marine-grade corrosion protection for long-haul towing.
The Marlon MB1250-46 Trailer is a lightweight, single-axle boat trailer designed for smaller utility, aluminum, and jon boats up to 14 feet. Built with a hot-dipped galvanized steel frame, 46-inch fender clearance, and a 1,250 lb payload capacity, it provides exceptional corrosion resistance, smooth towing, and effortless launching for small watercraft.
The PT20 Single Axle Galvanized Pontoon Boat Trailer is a heavy-duty float-on transport trailer designed for 18-foot to 20-foot pontoon boats. Built with a hot-dipped galvanized steel frame for maximum saltwater and freshwater corrosion protection, it features a front winch stand with built-in ladder steps, fully adjustable marine carpeted bunks, a 3,500 lb axle, and submersible LED lighting for smooth launches and reliable trailering.
